3362C 0.5w 10 Ohms To 5 Megohms 10% Tolerance Cermet Trimmer Potentiometer
Quick Detail
• Cermet resistive material.
• Single turn.
• Through hole.
• Horizontal adjustment orientation.
• 0.5W rated power.
• Wide ohms range 10 ohms to 5 megohms.
• Electrical travel 220°,total mechanical travel 250°.
• Rotor designed for automatic machine adjust interface.
• Withstands harsh environments and immersion cleaning process.
Description
The 3362C Cermet Trimmer, a pinnacle of precision engineering designed to elevate your electrical adjustments to unprecedented levels of accuracy and reliability. Crafted with the finest cermet resistive material, this trimmer ensures optimal stability and longevity, delivering consistent performance over time. With its single-turn functionality and through-hole mounting design, installation and operation are streamlined for seamless integration into your circuits. Its horizontal adjustment orientation offers intuitive control, while the 0.5W rated power ensures robust performance under demanding conditions.
With a wide ohms range spanning from 10 ohms to 5 megohms and a tolerance of 10%, this trimmer accommodates diverse resistance requirements with precision and accuracy. Featuring an electrical travel of 220° and a total mechanical travel of 250°, fine-tuning your settings has never been more effortless. Despite its compact size, this trimmer boasts high precision and adjustable precision, guaranteeing reliable and stable performance in any environment. The rotor is meticulously designed for automatic machine adjustment interface, enhancing efficiency and productivity. Engineered to withstand harsh environments and immersion cleaning processes, the 3362C trimmer ensures durability without compromising performance. Experience unparalleled precision and reliability with the 3362C Cermet Trimmer, where innovation meets excellence for your electrical needs.
Specification
| Electrical Characteristics | Nominal Resistance Range | 10Ω~5MΩ |
| Resistance Tolerance | ±10%; ±20% |
| Terminal Resistance | ≤±1%R or 3Ω |
| Contact Resistance Variation (CRV) | ≤3%R or 3Ω |
| Insulation Resistance | 500 Vdc. 100 megohms min. |
| Withstand Voltage | 101.3KPa, 500 Vac; 8.5KPa, 250 Vac |
| Dielectric Strength | 500 Vac(1 Min.) |
| Electrical Travel | 220° |
| Environment Characteristics | Resistance to Solder Heat | 250℃ for 10 Secs. |
| Rated Power(300 volts max.) | 70℃, 0.5W; 125℃, 0W |
| Operating Temperature Range | -55°C ~ + 125°C |
| Temperature Coefficient | ±250, ±100 ppm /°C |
| Temperature Variation | ΔR≤±3%R, Δ(Uab/Uac)≤±1% |
| Collision | 20G, ΔR≤±1%R, Δ(Uab/Uac)≤±1% |
| Vibration | 100G, ΔR≤±1%R, Δ(Uab/Uac)≤±2% |
| Electrical Endurance At 70°C | 1000 hours @ 70℃ Rated Power; ΔR≤±3%R |
| Rotational Life | 200 Cycles, ΔR≤±3%R |
| Physical Characteristics | Total Mechanical Travel | 250° |
| Starting Torque | ≤25 mN.m |
| Clutch Torque | ≤35 mN.m |

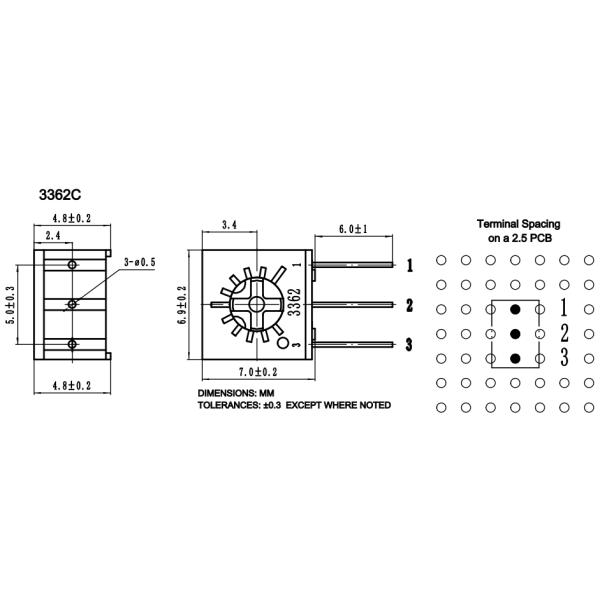

Dimension
Packaging
Packaging specification:50 pieces per tube.
Application
• Calibration of Electronic Devices.
• Industrial Control.
• Medical Devices.
• Communication Equipment.
• Consumer Electronics.
• Aerospace.
• Automotive Electronics.
Advantage
• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, Reach, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
